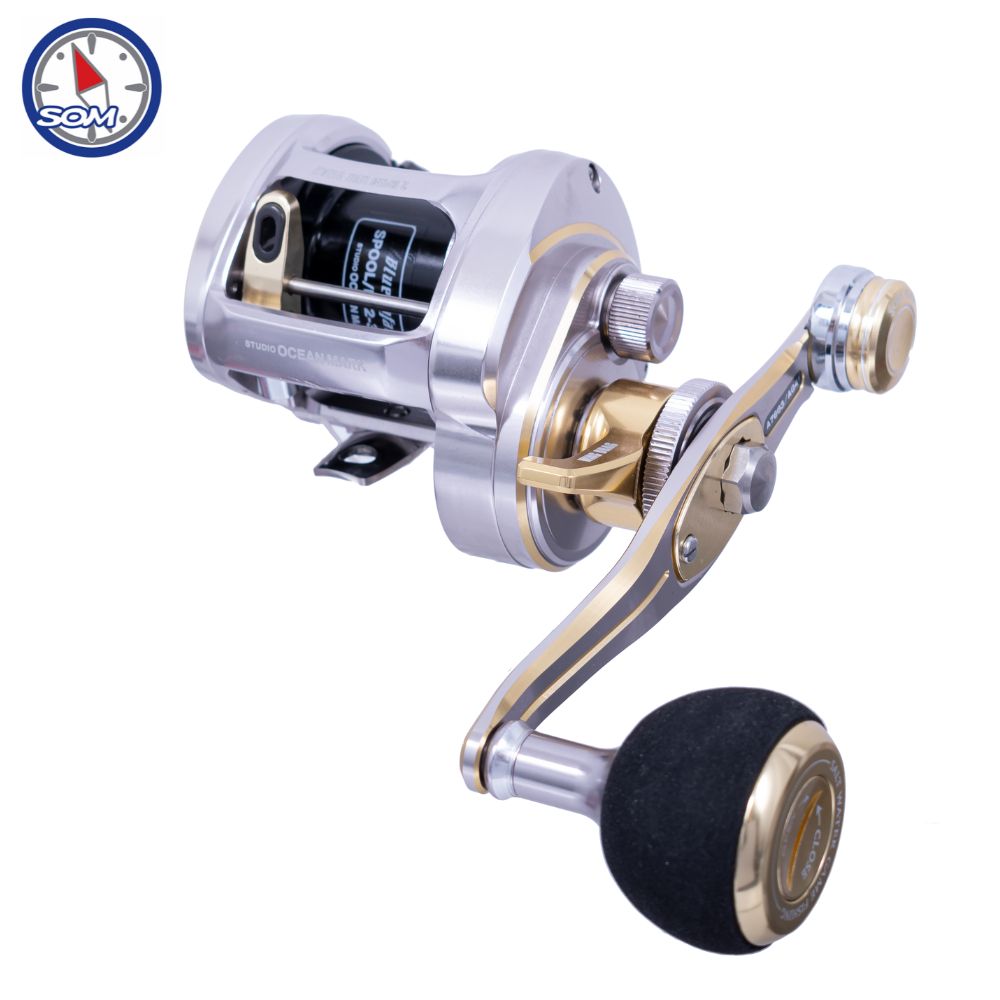

STUDIO OCEAN MARK Baitcasting Light Jigging Lefthanded Wind Drag Reel BLUE SAFARI 35Hi/L
The Blue Safari has landed!
Meet the world’s first Wing Drag reel: Studio Ocean Mark’s innovative solution that mates the convenience of a star drag with the repeatability of a lever drag. Featuring an infinitely-adjustable drag wheel and four-position “wing” to fine-tune your drag on the fly, the Blue Safari retains the familiar thumb bar to instantly engage and disengage free spool. And with a non-disengaging variable-speed level wind mechanism, gone are the days of braided line dig-ins that keep jigs from hitting the bottom and inevitably lead to heartbreak when your would-be personal best makes that one last surge for the bottom. Additional standard features include a waterproof drag compartment with carbon fiber washers, an ultra-durable stainless steel clutch, and exquisitely-machined non-circular frame design for greater rigidity. Designed with slow, tai rubber, and inchiku jigging techniques in mind.
It is a new drag system that is easy to set like a star drag and easy to understand the drag value like a lever drag.
The drag is adjusted by moving the wing back and forth, and the drag can be adjusted in four stages. The amount of change is about 400-500g per click from where the initial drag value is set with the preset knob.
Drag setting method:
When making the setting value the weakest (4 steps up to MAX)
1.Tilt the wing drag forward.
2.Turn the preset knob to set the initial drag value.
3.The drag value can be adjusted step by step by tilting the wing drag to the back.
When setting the value in the middle
(2 steps to MIN, 2 steps to MAX)
1.Move the wing drag to the center as shown in the picture.
2.Turn the preset knob to set the initial drag value.
3.When the wing drag is pushed forward, the drag value decreases, and when pushed backward, the drag value increases.
Adopted a system that can easily replace the spool with one screw on the gear box side.
With the following 3 types of spools, it corresponds to almost all offshore scenes in the near sea. It is possible to change the spool without changing the reel even on a relay ship where the fishing items change on one boarding.
1. Standard spool … PE2 No. 300m. It covers light jigging such as blue fish jigging in the near sea.
2. Deep groove spool … PE2 No. 600m. Deep groove design for mid-deep sea jigging. Sold separately
3. Shallow groove spool… PE1.5 No. 300m. For lighter fishing than standard spools. Sold separately
Spool replacement method
The palming cup can be easily removed by simply loosening the screw on the gearbox side, and the spool can be replaced.
Aluminum machine cut gear box & frame, gear adopts high module gear inherited from Blue Heaven. Strong hoisting power is achieved with excellent body rigidity and high module gear that does not distort even when drag load is applied. The transmission efficiency of the hoisting force has been improved by 9%* compared to the No. 300 class of other companies.
Numericalize the handle input load and compare the spool rotation force at that time.
Uses an interlocking level winder. In addition, the level winder has been made 2-speed.
The 2-speed level winder repeats tight winding and twill winding in a round trip, so you can fight with fish without worrying that the line will not bite even under high load.
BS35 uses a wide spool.
By widening the spool, there is little change in the amount of winding due to water depth, enabling jig action as you imagine.
While other companies’ clutch bars in the same class are made of plastic, the BS35’s clutch bars and cams are made of stainless steel, boasting one class higher strength and durability.
In addition, DLC coating is applied to the clutch bar to reduce friction when contacting with the pinion gear, and achieve smooth clutch operation that does not change even under high load or long-term use.
The combination of carbon drag washers and stainless steel drag discs provides smooth initial movement and stable drag force, demonstrating excellent drag performance that does not change even in long fights.
The drag system, which consists of multiple drag washers, is covered with waterproof rubber.
It prevents water from entering the drag disc even in offshore conditions where it is constantly exposed to water, contributing to a stable drag.
The handle knob adopts AG41 assuming a fight with a big game. The handle arm is a variable system of 76mm and 63mm, designed to be counterbalanced at 76mm and fully balanced at 63mm.
The 76mm counterbalance makes it easy to operate jigs when jigging for blue objects, and it is perfectly balanced for hairtail jigging and tie rubber, making it possible to easily perform one-pitch and constant-speed winding. In this way, one handle can be set according to the target and fishing method.
Blue Safari 35Hi/L Lefthanded
Gear Ratio:6.7:1
Retrieve:90cm
Braid Line Capacity:PE2.0/300m
Reel Weught:405g
Max Drag:6kg
