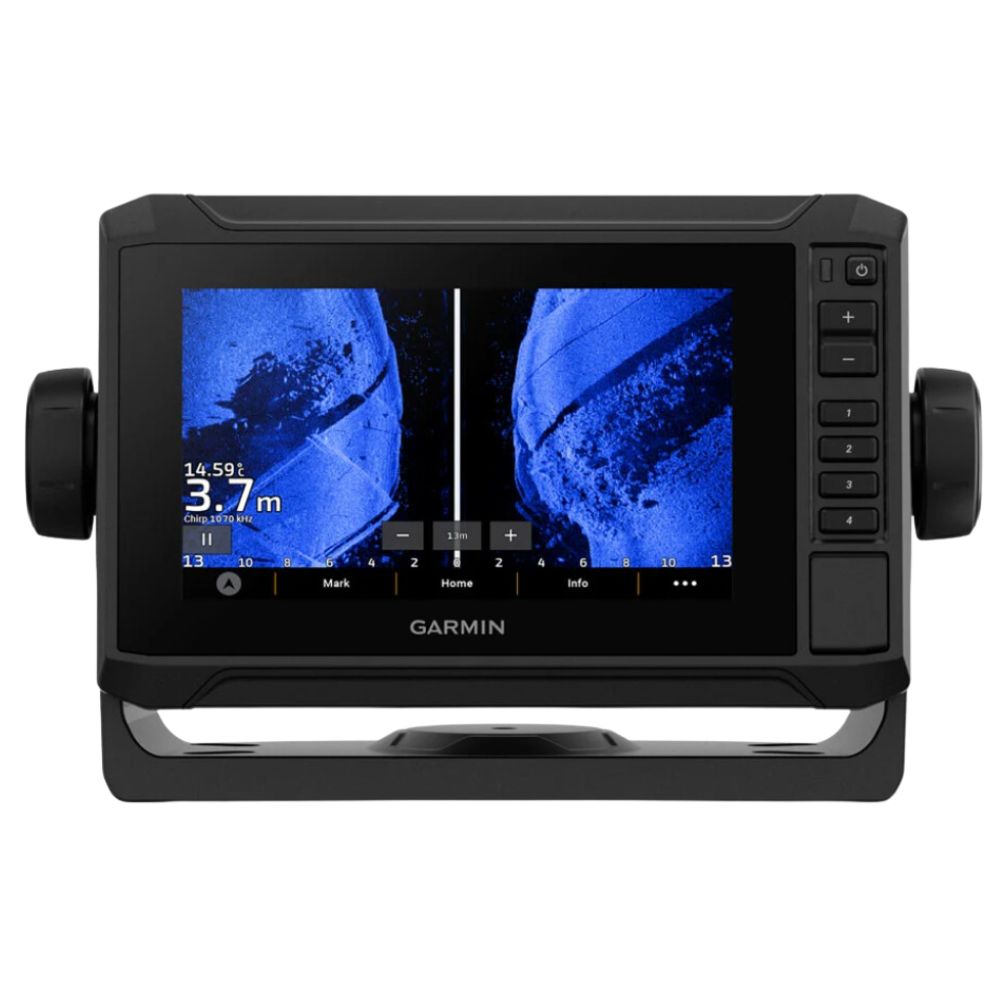

GARMIN ECHOMAP UHD2 92sv With GT56UHD Transducer
The 9″ ECHOMAP™ UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail, clarity and viewing angle. See clear, sharp fish arches with Garmin traditional sonar. ClearVü™ and SideVü™ scanning sonars feature vivid color palettes for clear, high-contrast views all around your boat (transducer sold separately). ECHOMAP UDH2 also supports LiveScope™ sonar systems.Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter. Wherever you drop your line, get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS. You can also pair with the free all-in-one ActiveCaptain® app on your compatible smartphone for access to the OneChart™ feature, software updates and more. The chartplotter supports NMEA 2000® networks to connect your compatible autopilots, digital switching, music, and more to view all on one screen.
Easy-to-use 9″ chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle
Built-in worldwide basemaps with support for Garmin Navionics+™ and Garmin Navionics Vision+™ cartography, BlueChart® g3 coastal charts and LakeVü™ g3 inland maps
Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter”
Included GT56-TM transducer for Garmin traditional, ClearVü™ and SideVü™ scanning sonars
Sensors
Has a built-in receiver – YES
Receiver – 10 Hz
NMEA 2000 Compliant – YES
GPS – YES
GLONASS – YES
Galileo – YES
BeiDou – YES Supports WAAS – YES
Supports multi-band GPS with multiple constellations – YES
Built-in maps
Built-in AUTO GUIDANCE+ – YES (downloaded via ActiveCaptain app)
Additional card support
Garmin NAVIONICS+™ – YES
Garmin NAVIONICS VISION+™ – YES
Topo – YES
Standard display – YES
Outlines Garmin QUICKDRAW – YES
Chartplotter Features
AIS – YES
DSC – YES
Supports FUSION-LINK™ compatible radios – YES
Compatible with ACTIVECAPTAIN® – YES
Sailing features – YES
Sonar features and specifications
Displays sonar – YES
Output power – 500 W
Conventional Sonar (Dual Frequency/Beam) – Integrated (Single Channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ – built-in 260/455/800/1000/1200 kHz
SIDEVÜ – built-in 260/455/800/1000/1200 kHz
PANOPTIX™ sonar – YES
LIVESCOPE – YES

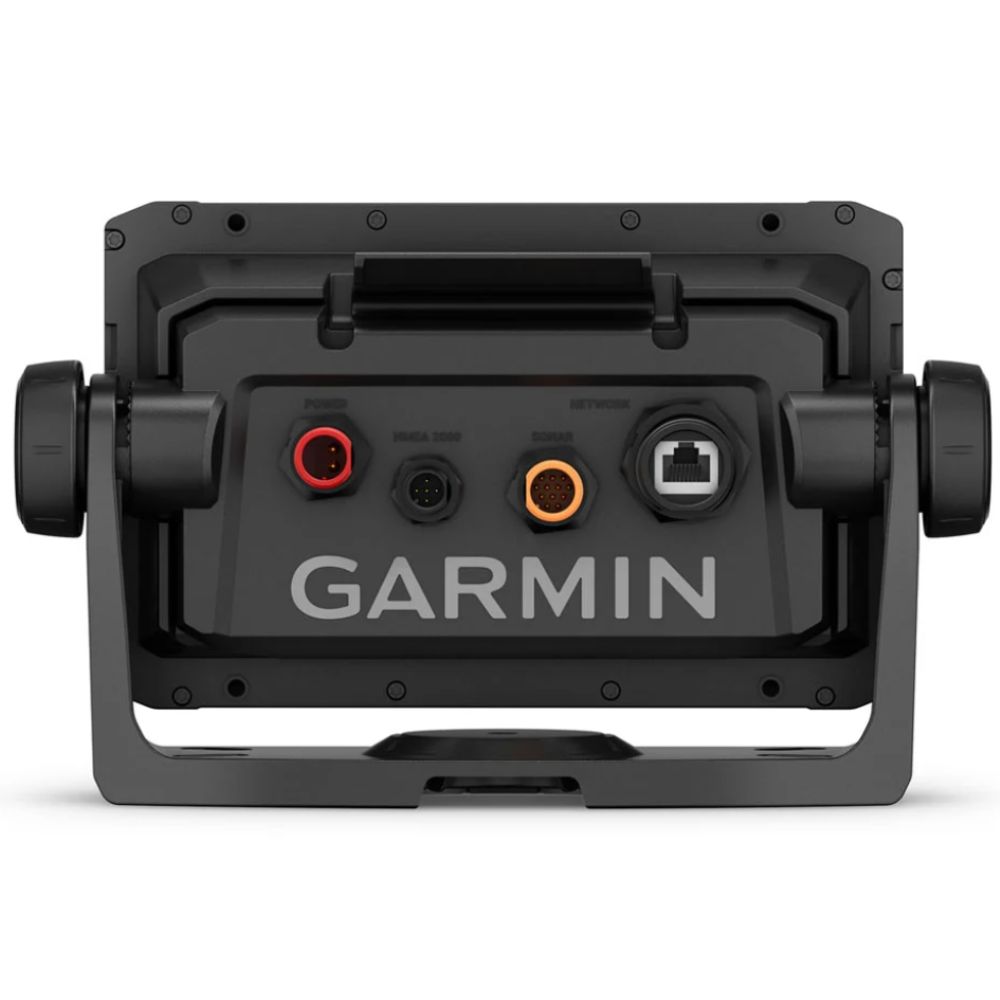

Connections
NMEA 2000 ports – YES
GARMIN Marine Network Ports – 1
12-pin sensor ports – 1
BLUETOOTH® pairing – YES
ANT+ (connection) – YES
GARMIN WI-FI Network (LAN) – YES
Electrical characteristics
Input power – 9 to 18 VDC
Typical current consumption at 12 V DC – 1.53 A
Maximum current consumption at 12 V DC – 3.2 A
Maximum power consumption at 10 V DC – 18.4 W
What’s in the Box:
ECHOMAP UHD2 92sv
GT56-TM transducer
Power cable

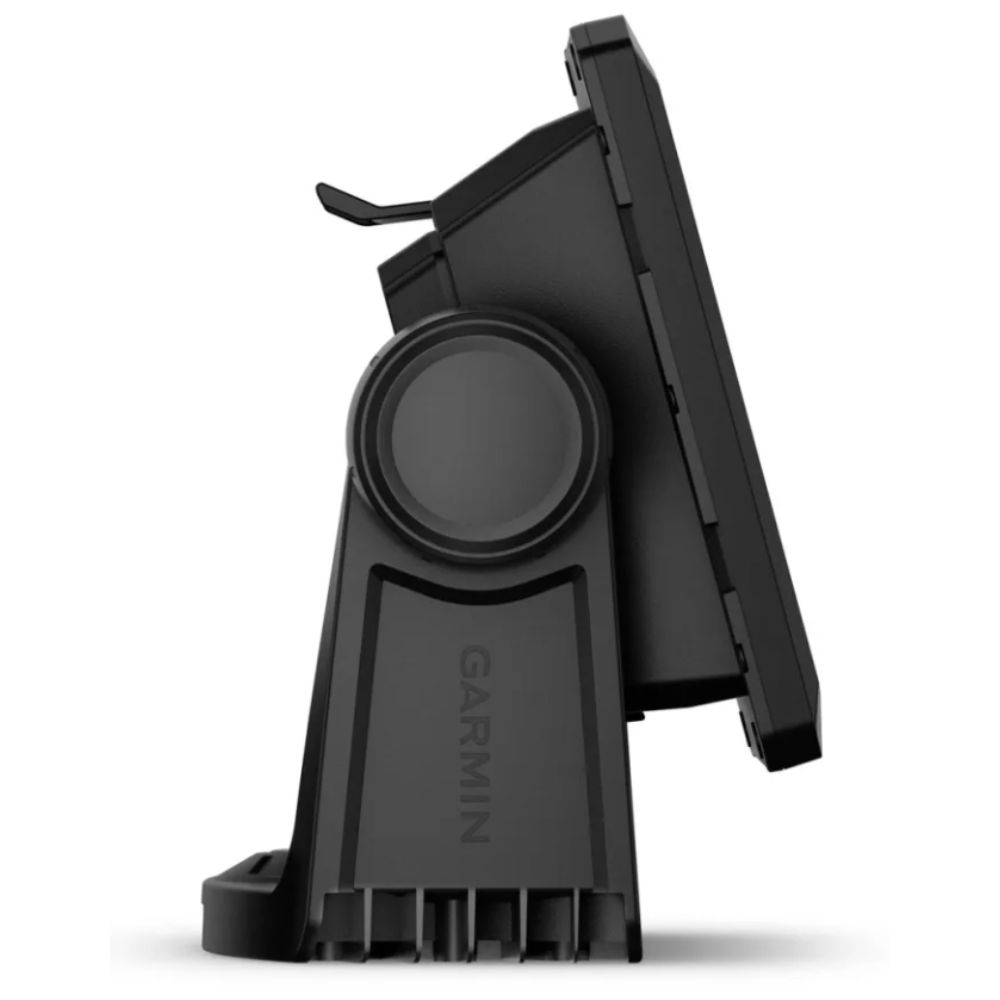

Tilt mount with quick-release cradle
Protective cover
Hardware
Documentation
