DAHO LOOP SPLICING NEEDLES

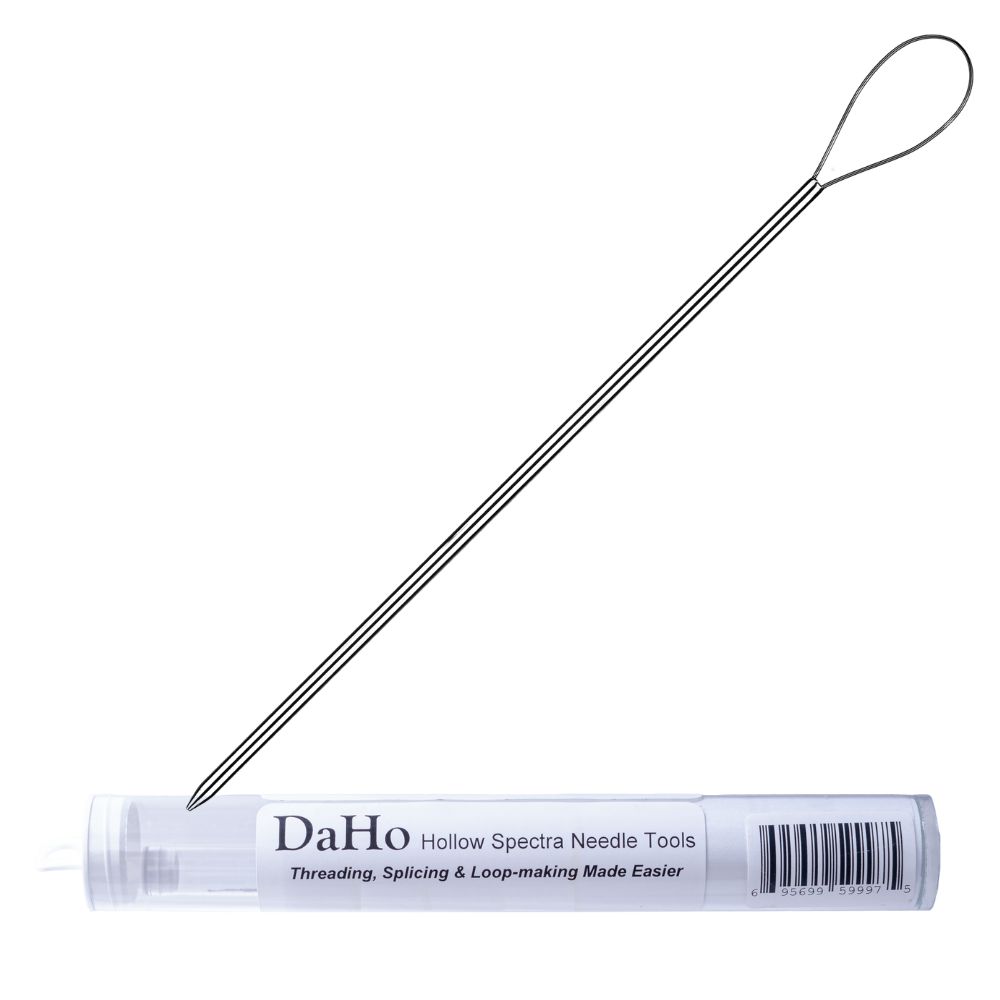

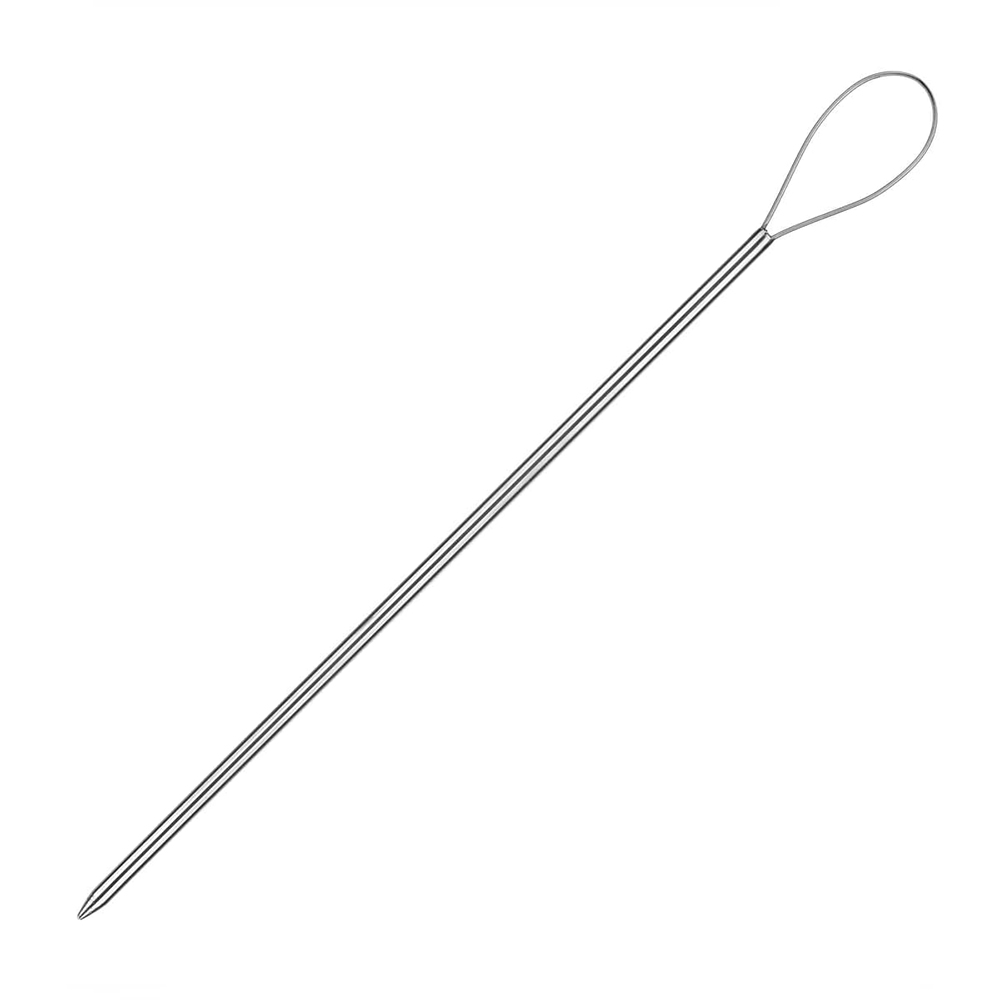

DaHo Loop Splicing Needles are mainly used to insert one piece of spectra line inside another. They can also be useful in ‘opening up’ the inside of the hollow spectra line so larger tools can be more easily used. Instead of being hollow inside, the loop splicing needle has a wire loop attached to its trailing end. Below is a picture showing the detail of the DaHo Loop Splicing Needle ends.
The needle is inserted into the Spectra line being spliced, and the end of the other piece of spectra line is inserted into the needle’s wire loop. As the needle is inserted into the line being spliced, the other piece of line is pulled along with it. When done, the needle is brought out of the line being spliced, and the end of the line attached to the needle wire loop is tightened to complete one side of the splice, or the terminating loop, as the case may be.
Typically, thicker walled tubing is used for these needles, as the focus is not on the needle’s internal open size, but on strength, and the always important overall small size. The primary size of the needle is the OD, or Outside Diameter, and what sizes of spectra lines it would best be used with.
Our Loop Splicing Needle is built from a 304 stainless steel tube, as all our products, but because of its size, we have filled it with a solid 304 SS wire. This design gives it the strength of a tube, but it will not crease like a tube if it is ever bent. This needle can be bent and straightened without tube damage.
Made in USA
Package content one DaHo Loop Splicing Needle.
X-Small Loop Splicing Needle .0250″/.635mm
50# to 80#
Small Loop Splicing Needle .0355″/.90mm
60# to 130#
Medium Loop Splicing Needle .0420″/1.06mm
80# to 200#
Large Loop Splicing Needle .0500″/1.27mm
130# to 300#
X-Large Loop Splicing Needle .0650″/1.65mm
300# and up
